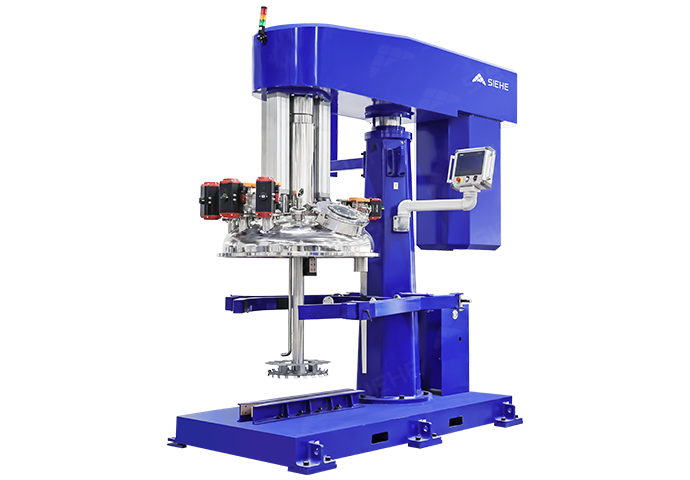

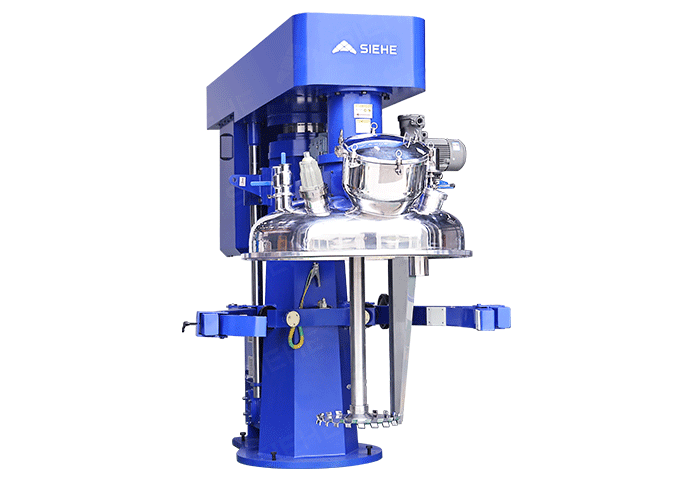

Vacuum Disperser with Scraper

Consultation Contact Us
2024040806100372
2024040806103240
Home > Core Products > Mixing Slurry Production Technology > Multi-functional Dispersing Mixer

Description

The Vacuum Disperser with Scraper is a comprehensive product with function of dispersing, scraping, and vacuumizing, with the core technology comes from Germany. During dispersing process, scraper can rotate along the tank wall and generates a radial mixing flow. In addition, the PTFE scraper can scrape the materials off the tank wall efficiently. It is good for the materials with mid-and-high viscosity and thixotropy property. The finished products can be discharged completely and the tank are easy to clean. With vacuum closed design, together with vacuum pump or the pump group. The vacuum degree can go up to -0.098mpa（20mba）, It is apply to the dispersing and mixing materials under special working condition like vacuum degassing, vacuum materials feeding, inert gases protection etc.

Advantage

  • High-efficiency dispersion, high automaticity
    The maximum speed can be 800rpm, and the maximum linear speed is over 31m/s, with the high shearing efficiency, to make sure the powder materials will be dispersed in to liquid rapidly. The double-layer high-efficiency dispersing discs using German technology increases the dispersion energy by 50%. Equipped with temperature and pressure sensors, precise measurement and high degree of automation.
    01
  • Discharge clean, easy to maintain
    Scraper perfectly solves the problem of materials sticking on the tank wall. Scraper well matched with the tank well during rotating, to drive the materials from the side to the middle. PTFE materials scraper is designed to be adjustable. And they cling to the tank wall always under the counterforce action of materials, with long service life. The scraper fixed with bolts can be replaced easily.
    02
  • Safer and higher environmental protection index
    The device can be designed with vacuum cover and big flange, which can be totally closed removable tank, and generate a high vacuum degree space, to avoid the solvent volatilization during mixing. All the working condition can be supervised through the sight glass and lamp. In addition, sanitary manhole is valued for cleaning and charging materials.
    03
  • Customized options
    Can be customized for various types of non-standard products, such as explosion-proof type, one machine with multi cylinder type, material can be customized according to requirements of SS321\SS316L stainless steel.
    04
