Triple shaft Multi-functional Dispersing Mixer

Powerful Mixing, Efficient Slurry/Paste Making
Consultation Contact Us
Triple shaft Multi-functional Dispersing Mixer
Triple shaft Multi-functional Dispersing Mixer
Home > Core Products > Mixing Slurry Production Technology > Multi-functional Dispersing Mixer

Description

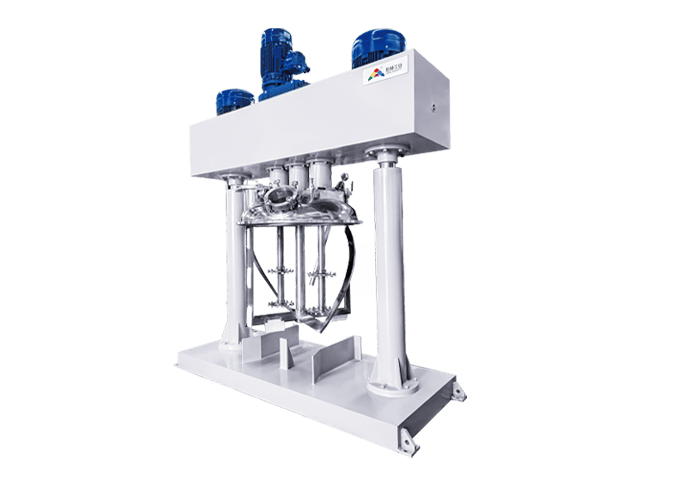

  • Triple shaft Multi-Functional Dispersing Mixer is a machine developed by SIEHE SMART with powerful dispersing and mixing function. The low-speed agitator is anchor agitator with scraper for wall and tank bottom. Mid-speed agitator (off-center) is screw type agitator, High-speed Agitator (off-center) is high-speed disperser or high shear emulsifier. It is suitable for processing of solid-liquid, liquid-liquid, paste-paste as well as other materials with large difference in density and proportion, large viscosity range from low viscosity to high viscosity up to 1000 Pa.s. With help of its extremely high output torque, it is widely used in industries such as putty, ink, sealant etc..

Advantage

  • High Mixing
    Efficiency, Wide
    Application Range
    Triple shaft Multi-Functional Dispersing Mixer consists of the anchor agitator with scraper, mid-speed agitator and high speed disperser (Or two sets of high speed disperser). Three sets of agitators work at the same time, so that the materials are mixed quickly under the action of strong shearing and mixing force. Mid-speed agitator mainly is screw type agitator. High speed disperser can be single layer toothed disc type, double layer high-shear dispersing disc (German technology), high-shear emulsifier with rotor and stator structure etc.. Optimal agitator type will be designed for materials with different viscosity, specific gravity and also different production process requirements.
    01
  • Safe and Convenient
    Operation
    Adopt double hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability. With tank locking device to prevent any possible accident due to tank displacement during operation. Interlock device can be set to prevent mis-operation.
    02
  • No Residue On
    The Wall, Complete
    Discharging
    The anchor agitator is with scrapers. The scrapers cling to the container and scrape the materials on the wall and tank bottom off continuously. The container inner wall is fine finished by large vertical lathe and then polished by big automatic polishing machine to ensure the scraper can scrape all the materials sticking to the wall off without residue, improving the mixing effect.
    03
  • Customized Options
    Machines can be customized as per production process requirements: Explosion proof type (Europe ATEX Standard), Vacuum type (Vacuum degree can be up to 20mbar), Heating/cooling type (Max. temp. can be up to 250℃), Intelligent type (with PLC Control) and so on. Materials can be customized to be SS316L, Duplex Steel or coated with special materials.
    04

Technical Parameter

Model Working volume
(L)		 Design volume
(L)		 Mixer Power
(kw)		 Mixer Speed
（rpm）		 Disperser Power
(kw)		 Disperser Speed
（rpm）		 Emulsifier Power
(kw)		 Emulsifier Speed
（rpm）		 Screw Power
(kw)		 Screw Speed
（rpm）
SJBD-100 100 140 4~7.5 0-85 11~18.5 0-2000 7.5~11 0-2500 4~7.5 0-240
SJBD-200 200 280 5.5~11 0-85 15~22 0-1800 11~15 0-2000 5.5~11 0-215
SJBD-300 300 400 7.5~15 0-70 22~45 0-1500 11~18.5 0-2000 7.5~15 0-215
SJBD-500 500 665 11~22 0-60 22~55 0-1200 15~22 0-1500 11~18.5 0-200
SJBD-800 800 1070 15~30 0-50 37~75 0-1200 22~30 0-1500 15~22 0-200
SJBD-1000 1000 1320 22~37 0-45 45~90 0-1000 30~37 0-1500 18.5~30 0-180
SJBD-1500 1500 1980 30~45 0-45 55~110 0-900 37~45 0-1500 22~37 0-180
SJBD-2000 200 2550 37~55 0-40 75~132 0-800 45~55 0-1200 30~45 0-160
SJBD-3000 3000 3820 45~75 0-35 110~160 0-700 55~75 0-1200 37~55 0-160

Remarks:
* The model selection shall be subject to the data such as materials viscosity, property etc.. Please contact with our sales engineers.
* If any change in the data or picture, subject shall prevail without notice.
* The table does not include all products, please contact with our sales engineers for more information.
