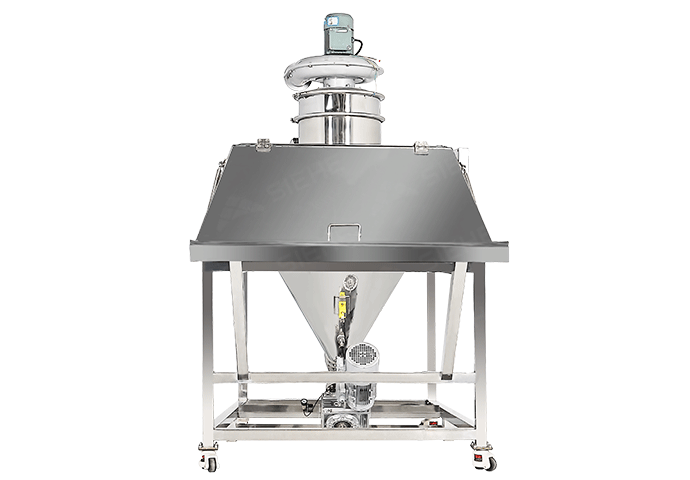

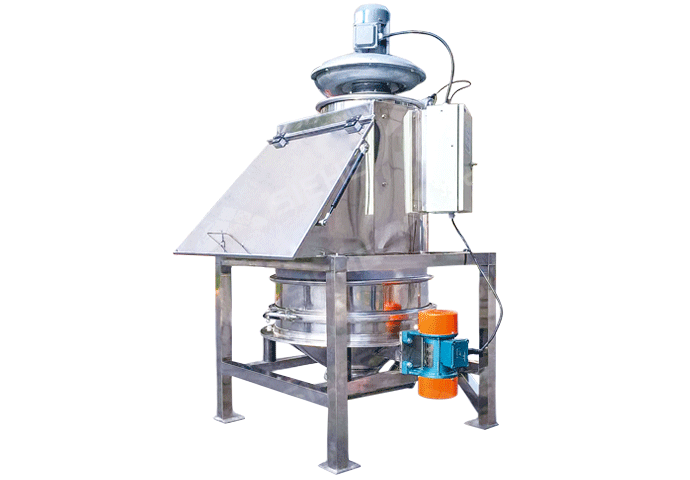

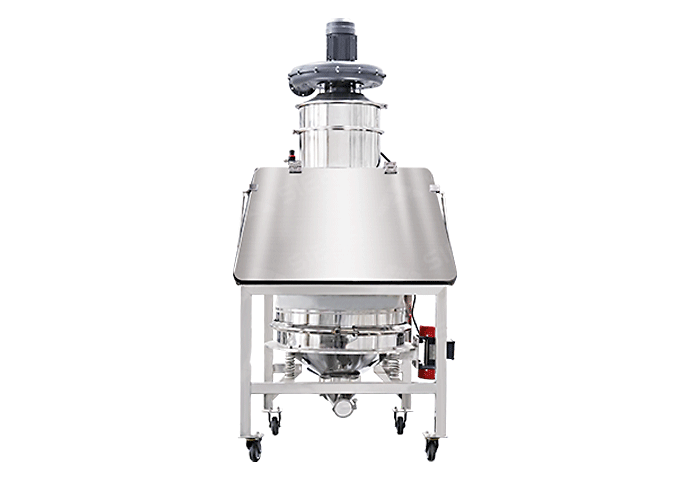

Small Bag Unpacking Station
Description
Small Bag Unpacking Station is commonly used for unpacking and discharging for bags (25kg or 50kg) filled with powder or granule materials. The unpacking and discharging work is done through steps of manual bag open, automatic dumping and let the materials fall down by gravity to the storage hopper. The dust generated during operation is collected by the build-in dust collector to ensure clear working environment for operators. According to different production requirements, sieving function is optional to sieve impurities out. And also it can be equipped with Vacuum Feeder to feed materials through vacuum.
Advantage
-
Good Materials
Feeding EnvironmentImprove the feeding environment, the dust generated during operation is collected by the build-in dust collector to ensure clear working environment for operators.01 -
Easy OperationIt is characterized in simple and reliable structure, small power consumption, will not break materials and so on. It is especially suitable for the toxic, flammable, strong corrosive and dusty environment.02
-
Sieve ImpuritiesWith vibration sieve, it can remove the impurities introduced from the outside of the bag or the impurities caused by unpacking and bag breakage.03
-
Customized OptionsMachines can be customized as per production process requirements: Explosion proof type (Europe ATEX Standard). Optional functions: broken bags collector, rotary valve (control materials-feeding speed), glove box.04
Technical Parameter
Feeding Hopper Size: 800*800*1200mm
Feeding Height: 800mm
Sieving Mesh: 20 mesh/40 mesh/ 80 mesh etc..(Can be customized.)
Vibration Motor: 0/12KW
De-dusting Motor: 1.1KW
