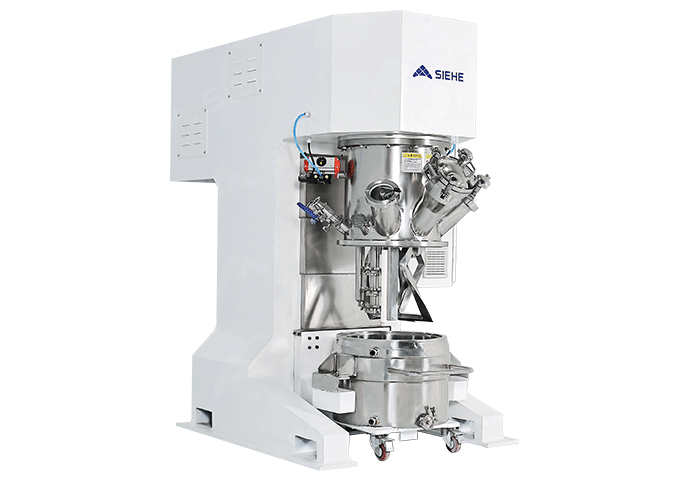

Powerful Pilot Double Planetary Dispersing Mixer
Description
Powerful Pilot Double Planetary Dispersing Mixer, a new and high-efficient mixing equipment, is designed by SIEHE SMART for universities, research institute and factory lab for materials with mid and high viscosity. The machine consists of a low speed agitator and a high speed disperser. It is with good mixing, reacting, dispersing, kneading effect. It is with extremely high output torque and suitable for industries such as adhesive, silicone sealant, high-end ink etc.. The machine also can be with scraper for tank wall and bottom, without dead corner and residue.
Advantage
-
High Mixing Efficiency,
Wide ApplicationThe Powerful Pilot Double Planetary Dispersing Mixer has two sets of agitators and a set of high speed dispersing shaft revolving around the container axle and at the same time rotating at high speed, so that the materials are mixed quickly under the action of strong shearing and kneading force. Various agitators (blade type, twist type, claw type, frame type etc) are in option for materials with different viscosity, different density and different production processing requirements.01 -
Safe and Convenient
OperationAdopt tank lifting type (electric lifting). Tank locking device is to prevent any possible accident due to the tank displacement. Interlock device can be set to prevent mis-operation.02 -
No Residue On
The Wall, Complete
DischargingThere is scraper on the planetary frame rotating together with the planetary frame. It clings to the container and scrape the materials on the wall off continuously. The container inner wall is fine finished by large vertical lathe and then polished by big automatic polishing machine to ensure the active scraper on the planet frame can scrape all the materials sticking to the wall off without residue when rotating, improving the mixing effect.03 -
Customized OptionsMachines can be customized as per production process requirements: Explosion proof type (Europe ATEX Standard), Vacuum type (Vacuum degree can be up to 20 mbar), Heating/cooling type (Max. temp. can be up to 250℃), Intelligent type (with PLC Control) and so on. Materials can be customized to be SS316L, Duplex Steel or coated with special04
materials.
Video
Technical Parameter
| Model | Working Volume
(L) |
Design Volume
(L) |
Mixer Power
(kw) |
Revolution Speed
（rpm） |
Rotation Speed
（rpm） |
Disperser Power
(kw) |
Disperser Speed
（rpm） |
Lifting Stroke
（mm） |
Vacuum Pump Power
（kw） |
Weight Dimension
（mm） |
|---|---|---|---|---|---|---|---|---|---|---|
| SXJB-30 | 30 | 40 | 4~7.5 | 0-60 | 0-128 | 5.5~7.5 | 0-2930 | 450 | 1.5 | 1000kg
600*1800*1700 |
| SXJB-50 | 50 | 68 | 5.5~11 | 0-60 | 0-128 | 7.5~11 | 0-1450 | 550 | 1.5 | 1300kg
700*1800*2060 |
| SXJB-80 | 80 | 107 | 7.5~11 | 0-60 | 0-128 | 11~15 | 0-1450 | 600 | 1.5 | 1600kg
800*1900*2150 |
Remarks:
* If any change in the data or picture, subject shall prevail without notice.
* The table does not include all products, please contact with our sales engineers for more information.
