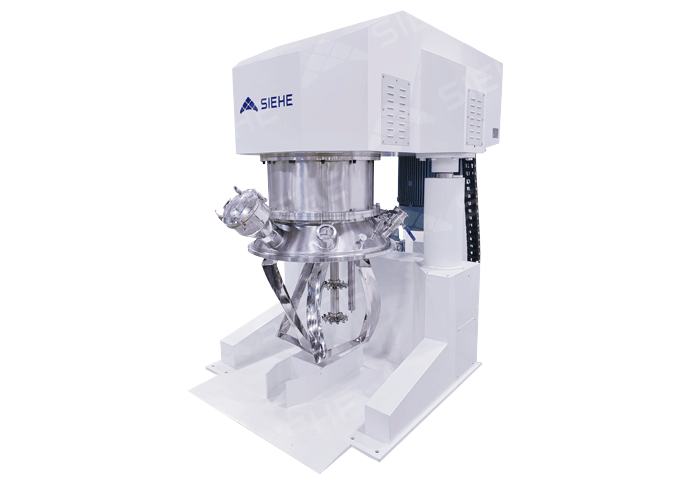

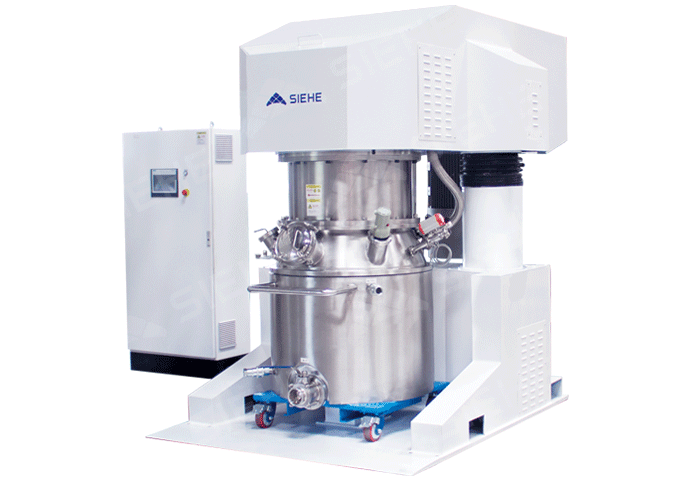

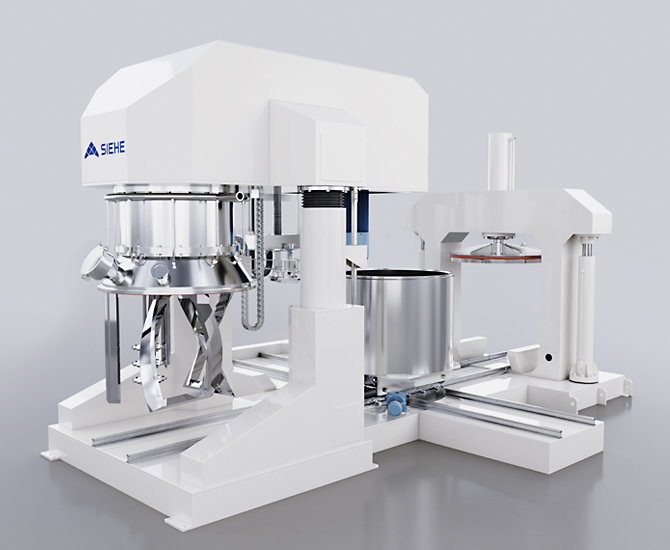

Powerful Double Planetary Dispersing Mixer

Suitable for High-solid and High-viscosity materials, Efficient and Intelligent
Consultation Contact Us

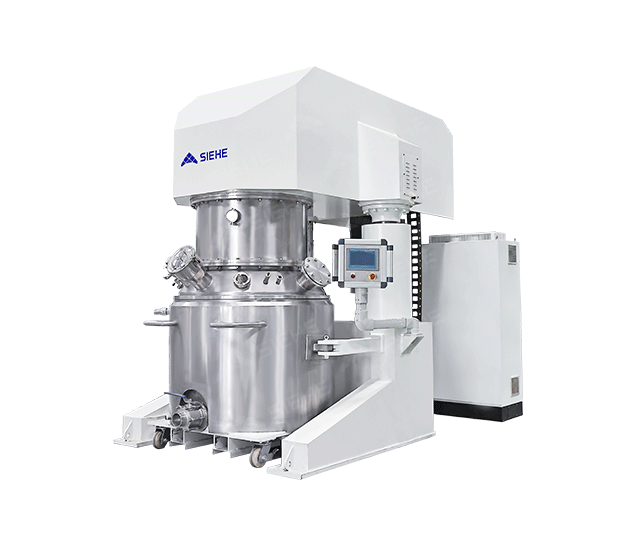

2023122902234172
high viscosity mixer,powerful double planetary dispersing mixer
high viscosity mixer,powerful double planetary dispersing mixer

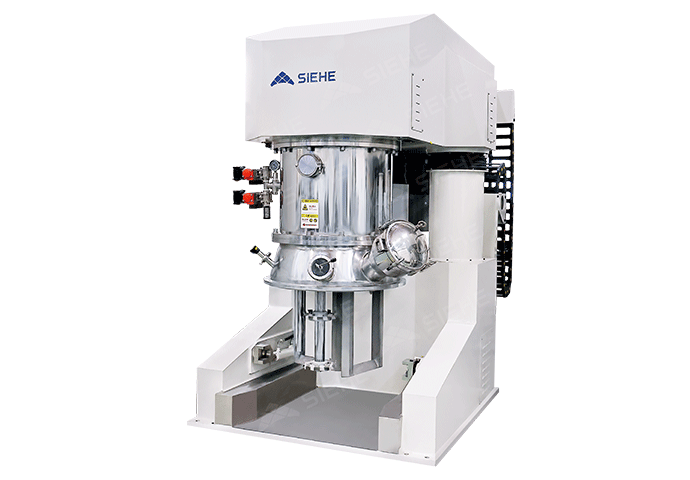

2024013101122899

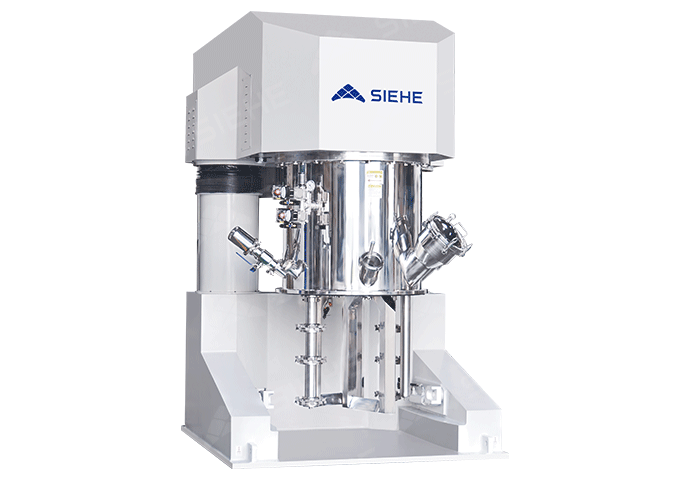

2024031402072492
Home > Core Products > Mixing Slurry Production Technology > Powerful Double Planetary Dispersing Mixer

Description

Powerful Double Planetary Dispersing Mixer consists of a low speed agitator and a high speed disperser. It is with good mixing, reacting, dispersing, kneading effect. It is suitable for processing of solid-liquid, liquid-liquid, paste-paste as well as other materials with large difference in density and proportion, large viscosity range from low viscosity to high viscosity up to 10000Pa.s. It is with extremely high output torque and suitable for industries such as adhesive, silicone sealant, high-end ink etc.. The machine also can be with scraper for tank wall and bottom, without dead corner and residue.

Advantage

  • High Mixing Efficiency,
    Wide Application
    The Powerful Double Planetary Dispersing Mixer has two sets of agitators and a set of high speed dispersing shaft revolving around the container axle and at the same time rotating at high speed, so that the materials are mixed quickly under the action of strong shearing and kneading force. Various agitators (blade type, twist type, claw type, frame type etc) are in option for materials with different viscosity, different density and different production processing requirements.
    01
  • Safe and Convenient
    Operation
    Adopt dual hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability. With tank locking device to prevent any possible accident due to tank displacement during operation. Interlock device can be set to prevent mis-operation.
    02
  • No Residue On
    The Wall, Complete
    Discharging
    There is scraper on the planetary frame rotating together with the planetary frame. It clings to the container and scrape the materials on the wall off continuously. The container inner wall is fine finished by large vertical lathe and then polished by big automatic polishing machine to ensure the active scraper on the planet frame can scrape all the materials sticking to the wall off without residue when rotating, improving the mixing effect.
    03
  • Customized Options
    Machines can be customized as per production process requirements: Explosion proof type (Europe ATEX Standard), Vacuum type (Vacuum degree can be up to 20 mbar), Heating/cooling type (Max. temp. can be up to 250℃), Intelligent type (with PLC Control) and so on. Materials can be customized to be SS316L, Duplex Steel or coated with special materials.
    04

Video

high viscosity mixer,powerful double planetary dispersing mixer

Technical Parameter

Model Working Volume
(L)		 Design Volume
(L)		 Mixer Power
(kw)		 Revolution Speed

（rpm）

 Rotation Speed

（rpm）

 Disperser Power

(kw)

 Disperser Speed

（rpm）

 Lifting Stroke

（mm）

 Vacuum Pump Power

（kw）

 Weight Dimension

Dimension

（mm）
SXJB-100 100 140 7.5~15 0-40 0-72 11~18.5 0-1450 650 1.5 3300kg

2350*1340*2050
SXJB-200 200 280 15-22 0-40 0-72 18.5~22 0-1450 800 3 4300kg

2350*1500*2320
SXJB-300 300 400 22-37 0-40 0-72 30~37 0-1450 900 3 5700kg

2700*1800*2520
SXJB-500 500 665 30-45 0-30 0-55 37~45 0-1450 1050 4 6800kg

2700*2000*2800
SXJB-650 650 800 37-45 0-30 0-55 37~45 0-1450 1100 4 8000kg

2700*2000*2900
SXJB-800 800 1070 37-55 0-30 0-55 45~55 0-1450 1150 5.5 8500kg

3200*2000*3100
SXJB-1000 1000 1320 45-90 0-30 0-55 55~75 0-1200 1200 7.5 11000kg

3400*2200*3300
SXJB-1500 1500 1980 55-110 0-20 0-36 75~90 0-1200 1400 11 15000kg

3400*2600*3800
SXJB-2000 2000 2550 75-132 0-20 0-36 90~110 0-1000 1550 11 20000kg

3800*2900*4100
SXJB-3000 3000 3820 90-160 0-15 0-28 110~132 0-1000 1700 15 25000kg

4300*3200*4600

Remarks:
* The model selection shall be subject to the data such as materials viscosity, property etc.. Please contact with our sales engineers.
* If any change in the data or picture, subject shall prevail without notice.
* The table does not include all products, please contact with our sales engineers for more information.
