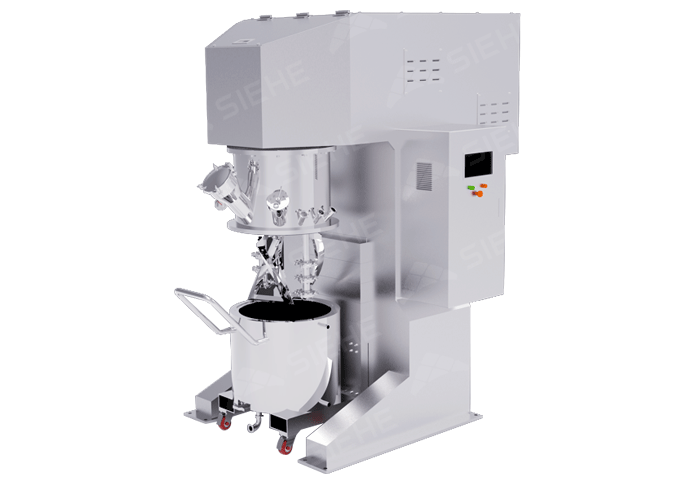

Pilot Double Planetary Dispersing Mixer (BATT)

high viscosity mixer,pilot double planetary dispersing mixer batt

Description

Pilot Double Planetary Dispersion mixer (BATT) is an efficient slurry production equipment developed by SIEHE SMART for the needs of universities, scientific research institutions and battery factory laboratories. It consists of two groups of low-speed agitators and two groups of high-speed dispersers, with very strong mixing and dispersion effects. Because of its great output torque, it is very suitable for dry preparation processes of various battery slurries. Tank is with cooling jacket, can control the slurry temperature effectively. The equipment has excellent airtightness and vacuum pressure holding function.

Advantage

  • High mixing efficiency, wide application
    Lab Double Planetary Power Dispersing Mixer (BATT) has two sets of agitators and two sets of high speed dispersing shaft revolving around the container axle and at the same time rotating at high speed, so that the materials are mixed quickly under the action of strong shearing and dispersing. Agitator adopts Twist type agitator, precision casting and processed by the Five-axis Machining Center, The mixing paddle adopts twist type agitator, precision casting, and processed by the Five-axis Machining Center. Un-repeat running track of the mixing paddle, without mixing dead corner to realize high uniformity of finished slurry.
    01
  • Safe and convenient operation
    Adopting tank lifting type, the tank locking device can prevent accident caused by displacement of tank during operation, realize 360 degree accurate positioning, and has position signal output. At the same time, a sliding rail device is set between the mixer and extrusion device, and the tank is moved to different stations to realize the integrated operation of mixing and discharging.
    02
  • HMI, Nice and upscale.
    Adopt human-machine interface, PLC control system, set process parameters, and a push to start. Docking with MES system, automatic data acquisition and transmission. Positive pressure air conditioning control cabinet is optional to prevent dust from entering, and ensure that the temperature inside the cabinet is within 25-30 ℃, so as to extend its service life.
    03
  • Customized options
    Machines can be customized as per production process requirements: Explosion proof type (Europe ATEX Standard), Vacuum type (Vacuum degree can be up to 20 mbar), Cooling type, Intelligent type (with PLC Control) and so on. Materials can be customized to be SS316L, Duplex Steel or coated with special materials.
    04

Video

Technical Parameter

Model Working volume

(L)

Design volume

(L)

Tank size

(mm)

Mixer power (kw) Revolution speed

(rpm)

Rotation speed

(rpm)

Disperser power(kw) Disperser speed

(rpm)

Tip speed

(m/s)

SXJD-30 30 44 Ø400*350 4 0-34 0-70 5.5 0-4000 21
SXJD-60 60 88 Ø500*450 5.5 0-34 0-68 7.5 0-3300 21

Remarks:

* If any change in the data or picture, subject shall prevail without notice.
* The table does not include all products, please contact with our sales engineers for more information.
