Laboratory Multi-functional Machine

Consultation Contact Us
high viscosity mixers,laboratory multi-functional machine
Home > Core Products > Mixing Slurry Production Technology > Multi-functional Dispersing Mixer

Description

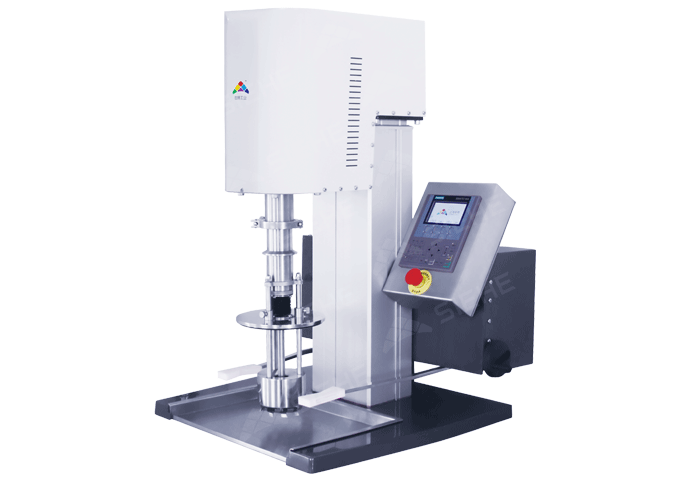

The lab machine is a newly developed lab machine with multi-function and with high performance. It consists of driving system supporting system, control system, working components and auxiliary system. With the help of different working heads and optional components, one machine can carry out different working modes including Disperser, Basket Mill, Emulsifier, Mixer, Mixing Mill to provide more possibilities for lab application. High-quality components, high-precision processing, intelligent HMI, all make work easy and happy.

Advantage

  • Steady lifting
    Adopt European imported servo control lifting system with height display and control. The lifting height is settable. Steady lifting, nice appearance, aluminium made shell makes it is easy to clean.
    01
  • Control system
    Adopt SIEMENS HMI and PLC, OMRON programmable Vector frequency conversion controller to realize following functions:
    Speed display and control, height display and control, running time display and control, output torque display, load display, total running time display, running data save and output, malfunction alarm and display.
    02
  • Working head
    Various working heads: Disperser, Emulsifier, Mills, Mixer are optional.
    Specially designed quick joint to enable to exchange the work head quickly to realize one machine have different functions.
    The main part processed by CNC processing center and CNC lathe is with high precision, stable running and long service life.
    03

Technical Parameter

Working mode Voltage Power (w) Speed Working head Capacity (water) (L) Lifting
Disperser 220V 50HZ 1100 100-6000rpm Ф50mm, 80mm, 100mm (single layer)

Ф80mm,100mm (double layer)

 2.5L、5L Electrical lifting
Basket mill 220V 50HZ 1100 100-3000rpm The grinding cavity volume is 1L, with 0.6-2mm zirconium bead 2.5L、5L Electrical lifting
High shear Emulsifier 220V 50HZ 1100 100-6000rpm Two types of working heads, high shear and Up-flow type 2.5L、5L Electrical lifting
Vacuum dispersing mixer 220V 50HZ 1100 100-6000rpm Tooted type dispersing disc, butterfly agitator, and propeller agitator 2.5L Electrical lifting
Mixing Mill 220V 50HZ 1100 100-6000rpm One Ф60mm and one80mm polyamide grinding wheel

One Ф85mm stainless steel eccentric grinding wheel

 1.5L Electrical lifting
