Extrusion Discharging Machine
Home > Core Products > Mixing Slurry Production Technology > Extrusion Machine

Description

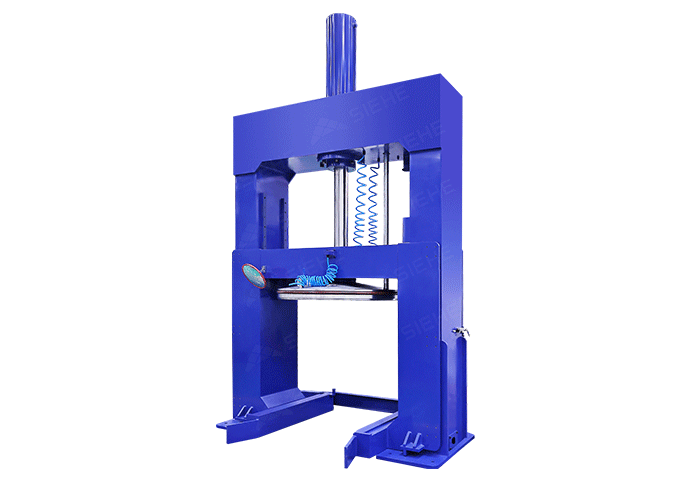

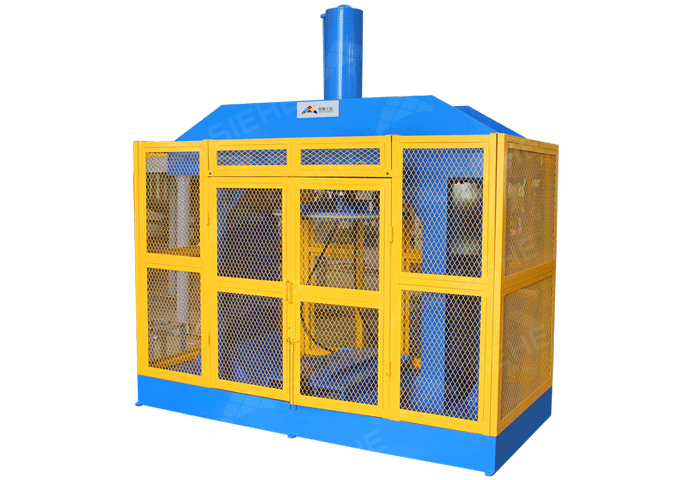

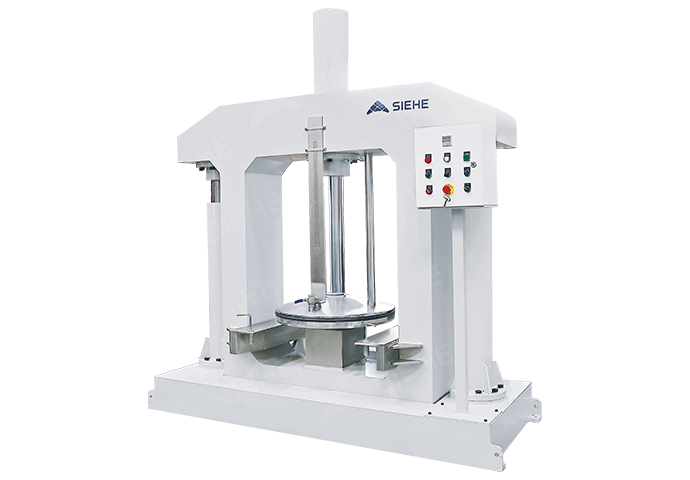

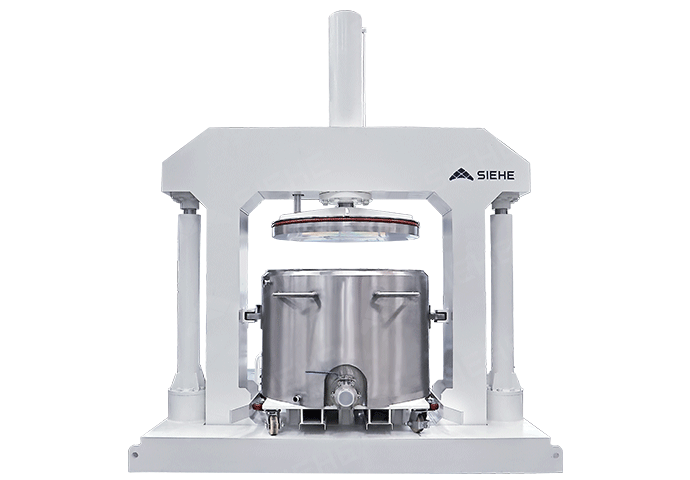

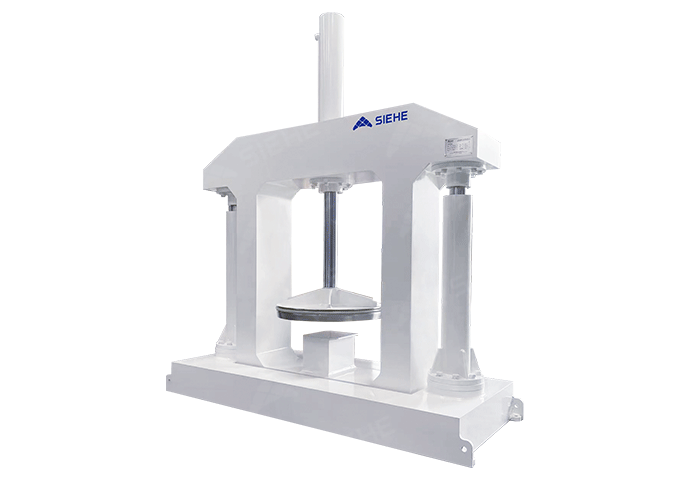

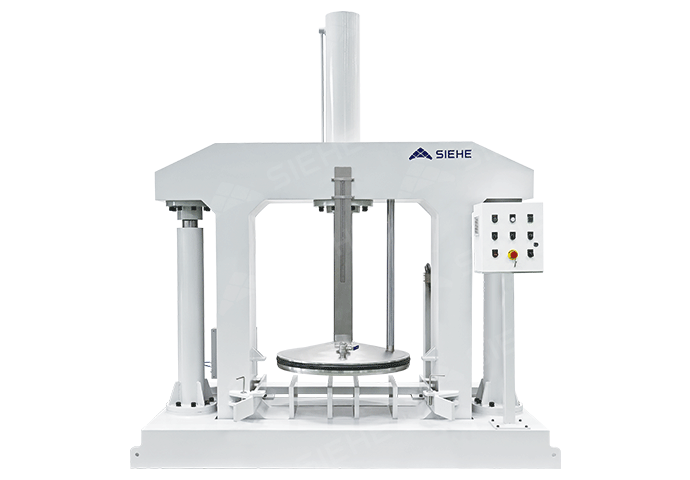

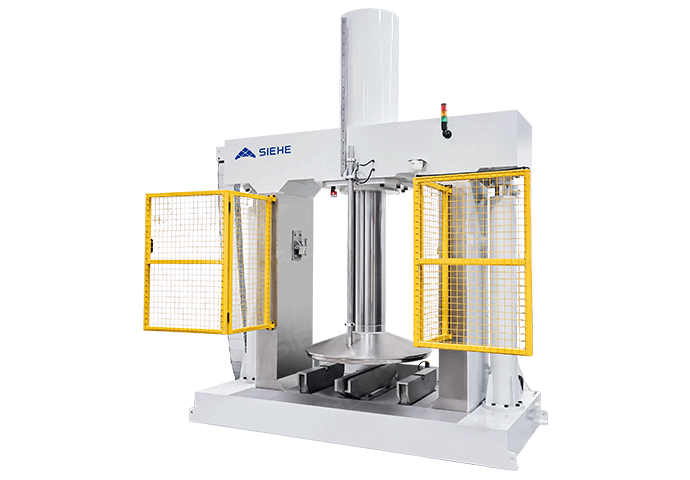

Extrusion (Discharging) machine is corollary equipment for Powerful Double Planetary Dispersing Mixer or Multi-functional Dispersing Mixer. Its role is to discharge or pack the mixed high viscosity materials. It has single cylinder type and dual cylinder type, driven by hydraulic (Driven by air is also possible if required.). It can deliver the materials (Ink, adhesive, silicone sealant etc.) to the pipeline from the pressing plate or the bottom of the tank by the pressing plate to realize all kinds of packing for different materials. The equipment is divided into tank lifting type and tank fixed type.

Advantage

  • Safe and Convenient
    Operation
    Adopt hydraulic cylinder as lifting actuators. Control the extrusion machine up, stop and down through controlling the valve, simple operation with high stability. With tank locking device to fix the tank quickly. It prevents any possible accident due to tank displacement. Interlock device can be set to prevent mis-operation.
    01
  • Wide Application, High
    Discharging Efficiency
    Extrusion machine can press the high-viscosity materials to the next producing process within only a few minutes. The liquid or paste they can handle is with viscosity from ten thousands to millions cps. Having several containers working with one extrusion machine can enhance the machine using efficiency significantly.
    02
  • Complete Discharging
    The extrusion machine is equipped with seal ring which is matching the tank perfectly. During the pressing process, the seal ring clings to the wall of the tank closely, no residue.
    It is also ok to have a film on the tank to isolate pressing plate from the materials to reduce the cleaning work.
    03
  • Customized Options
    Machines can be customized as per production process requirements: Explosion proof type (Europe ATEX Standard), Vacuum type (Vacuum degree can be up to 20 mbar), Intelligent type (with servo electric cylinder) and so on. Materials can be customized to be SS316L or coated with special materials.
    04

Video

2024070808544782

Technical Parameter

Model Tank Design Volume
(L)		 Hydraulic Motor Power
(kw)		 Pressing Plate Dia.
（mm）		 Pressing Stroke
（mm）		 Tank Lifting Stroke
（mm）		 Gauge
（Mpa）		 Pressing Plate Pressure
（T）
SYC-30 40 2.2~3 400 450 无 6.3-16 15~20
SYC-50 68 2.2~3 460 550 无 6.3-16 15~20
SYC-80 107 3~4 550 600 无 6.3-16 20~25
SYC-100 140 3~4 600 650 600 6.3-16 25~30
SYC-200 280 4~5.5 750 800 650 6.3-16 30~50
SYC-300 400 5.5~7.5 850 850 700 6.3-16 50~65
SYC-500 665 7.5~11 1000 1000 800 6.3-16 65~80
SYC-800 1070 11~15 1200 1100 1000 6.3-16 80~100
SYC-1000 1320 15~18.5 1300 1150 1000 6.3-16 100~120
SYC-1500 1980 18.5~22 1450 1350 1100 6.3-16 120~150
SYC-2000 2550 22~30 1550 1500 1100 6.3-16 150~200
SYC-3000 3820 30~37 1800 1650 1100 6.3-16 200~250

Remarks:
* The model selection shall be subject to the data such as materials viscosity, property etc.. Please contact with our sales engineers.
* If any change in the data or picture, subject shall prevail without notice.
* The table does not include all products, please contact with our sales engineers for more information.
