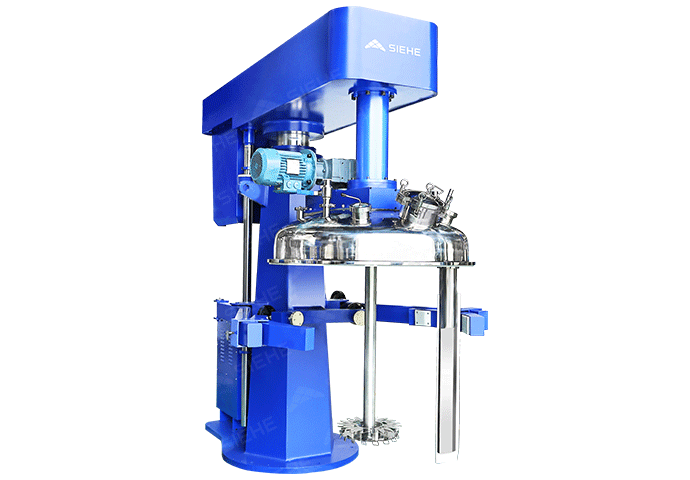

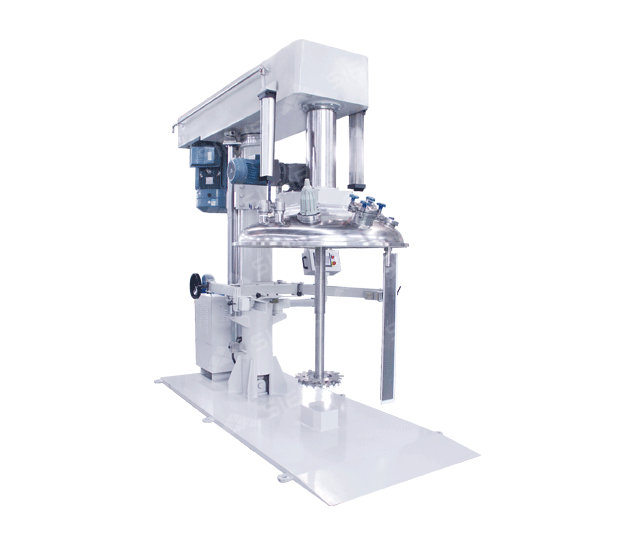

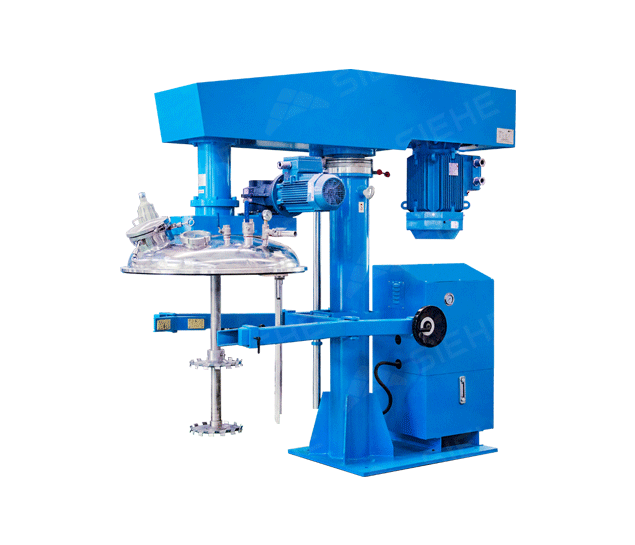

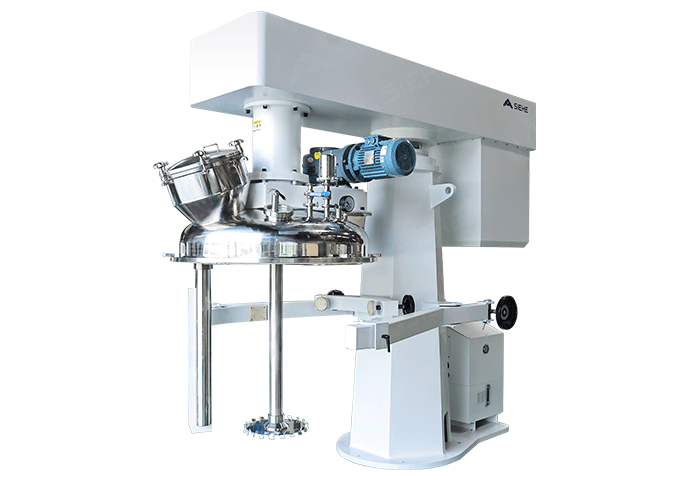

Co-axial Dual-shaft Dispersing Mixer

2024010206210314
high viscosity mixer,co-axial dual-shaft dispersing mixer
high viscosity mixer,co-axial dual-shaft dispersing mixer
high viscosity mixer,co-axial dual-shaft dispersing mixer

Description

Co-axial Dual-shaft Dispersing Mixer is a product with dispersing and scraping function developed based on single-shaft disperser. During dispersing process, scraper can rotate along the tank wall and generates a certain radial mixing function. At same time, the PTEF scraper can scrape the materials on the tank off efficiently. It is good for the materials with thixotropy property and with mid-and-low viscosity. The finished products can be discharged completely and the tanks are easy to clean.

Advantage

  • High Efficiency, Wide Application Range
    The concentric Dual shaft Dispersing Mixer is composed of a high-speed disperser and a wall scraper; High speed disperser has single-layer serrated dispersion disc, double-layer high shear dispersion disc (German technology) and other forms; It has excellent applicability for materials of thousands to tens of thousands of centipoises.
    01
  • Easy and Safe Operation
    Adopt hydraulic cylinder as lifting actuator. With control valve to control the hydraulic up, stop, down, easy and stable operation. The dispersing disc is fixed to the main shaft with Hexagon socket-head cap screws, which can be disassembled and exchanged quickly, easy to clean.
    02
  • Complete Discharging, Easy Maintenance
    Scraper perfectly solves the problem of materials hanging on the wall. The scraper is designed to be adjustable. And they cling to the tank wall always under the counterforce action of materials, with long service life. The scraper fixed with bolts can be replaced easily.
    03
  • Customized Options
    Machines can be customized as per production process requirements: Explosion proof type (Europe ATEX Standard), Vacuum type (Vacuum degree can be up to 20mbar), Heating/cooling type (Max. temp. can be up to 250℃), Intelligent type (with PLC Control) and so on. Materials can be customized to be SS316L, Duplex Steel or coated with special materials.
    04

Technical Parameter

Model Disperser Power

(kw)

Disperser Speed

(rpm)

Dispersing Disc Dia.

(mm)

  Scraper Power

(kw)

Scraper Speed

(rpm)

Capacity

(L)

SFST-500 15~30 0-1450 200~400 1.5 30 ≤400
SFST-1000 22~55 0-1450 300~500 2.2 20 ≤800
SFST-1500 37~75 0-1200 400~550 2.2 15 ≤1200
SFST-2000 45~90 0-1000 450~600 2.2 12 ≤1600
SFST-3000 55~110 0-1000 500~700 2.2 12 ≤2400
SFST-4000 75~132 0-1000 550~800 2.2 10 ≤3200
SFST-5000 110-200  0-800 700~1000 3 10 ≤4000

Remarks:

*The model selection shall be subject to the data such as materials viscosity, property etc..

* If any change in the data or picture, subject shall prevail without notice.
* The table does not include all products, please contact with our sales engineers for more information.
