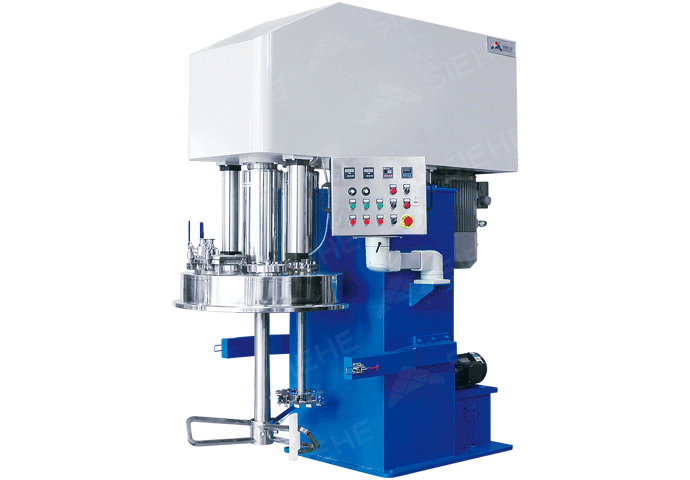

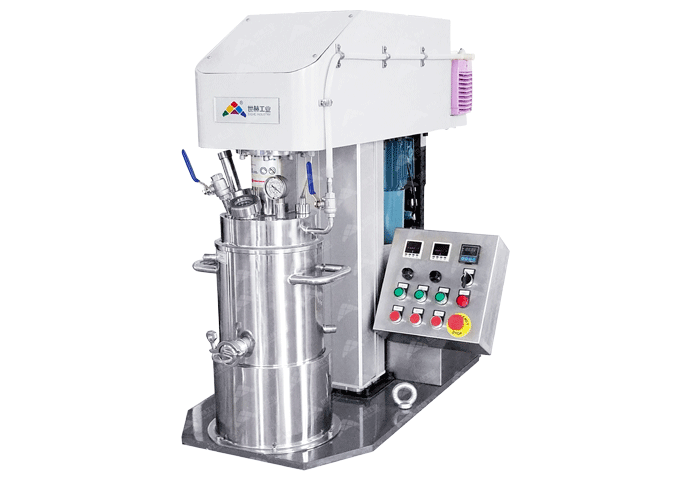

Butterfly Dispersing Mixer

Butterfly Agitator lifts up-and-down during production, Process Viscous Materials.
Consultation Contact Us
high viscosity mixers,butterfly dispersing mixer
high viscosity mixers,butterfly dispersing mixer
Home > Core Products > Mixing Slurry Production Technology > Multi-functional Dispersing Mixer

Description

Butterfly Dispersing Mixer is a machine developed by SIEHE SMART with powerful dispersing and mixing function. Butterfly agitator is with scraper in the center. High-speed disperser is off-center. It is suitable for processing of solid-liquid, liquid-liquid, paste-paste as well as other materials with large difference in density and proportion, large viscosity range from low viscosity to high viscosity up to 1000 Pa.s. With help of its extremely high output torque, it is widely used in industries such as putty, ink, sealant etc..

Advantage

  • High Mixing
    Efficiency, Wide
    Application Range
    Butterfly Dispersing Mixer consists of the butterfly agitator with scraper and high speed disperser. Two sets of agitators work at the same time, so that the materials are mixed quickly under the action of strong shearing and mixing force. High speed disperser can be single layer toothed disc type, double layer high-shear dispersing disc (German technology) etc.. Optimal agitator type will be designed for materials with different viscosity, specific gravity and also different production process requirements.
    The butterfly agitator can be customized to be with lifting function (The agitator lifts up and down in a closed state.)
    01
  • Safe and Convenient
    Operation
    Adopt single hydraulic cylinder or dual hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability. With tank locking device to prevent any possible accident due to tank displacement during operation. Interlock device can be set to prevent mis-operation.
    02
  • No Residue On
    The Wall, Complete
    Discharging
    The butterfly agitator is with scrapers. The scrapers cling to the container and scrape the materials on the wall off continuously. The container inner wall is fine finished by large vertical lathe and then polished by big automatic polishing machine to ensure the scraper can scrape all the materials sticking to the wall off without residue, improving the mixing effect.
    03
  • Customized Options
    Machines can be customized as per production process requirements: Explosion proof type (Europe ATEX Standard), Vacuum type (Vacuum degree can be up to 20mbar), Heating/cooling type (Max. temp. can be up to 250℃), Intelligent type (with PLC Control) and so on. Materials can be customized to be SS316L, Duplex Steel or coated with special materials.
    04

Technical Parameter

Model Working Volume(L) Design Volume(L) Mixer Power(kw) Mixer Speed（rpm） Disperser Power(kw) Disperser Speed（rpm） Lifting Stroke（mm） Vacuum Pump Power（kw）
SFSD-5 5 8 1.1 10-260 1.1 0-6000 500 0.16
SFSD-20 20 27 4~7.5 0-280 3~5.5 0-3000 550 0.75
SFSD-50 50 68 7.5~11 0-240 5.5~7.5 0-2000 550 0.75
SFSD-80 80 107 11~15 0-210 7.5~11 0-2000 600 1.5
SFSD-100 100 140 15~22 0-210 11~18.5 0-1500 650 1.5
SFSD-200 200 280 22~30 0-180 18.5~22 0-1500 800 3
SFSD-300 300 400 30~37 0-170 22~30 0-1500 900 3
SFSD-500 500 665 37~45 0-170 30~37 0-1500 1050 4
SFSD-800 800 1070 45~55 0-120 37~45 0-1200 1150 5.5
SFSD-1000 1000 1320 55~75 0-120 37~55 0-1200 1200 7.5
SFSD-1500 1500 1980 75~90 0-95 45~55 0-1000 1400 11
SFSD-2000 200 2550 90~110 0-85 55~75 0-1000 1550 11

Remarks:
* The model selection shall be subject to the data such as materials viscosity, property etc.. Please contact with our sales engineers.
* If any change in the data or picture, subject shall prevail without notice.
* The table does not include all products, please contact with our sales engineers for more information.
