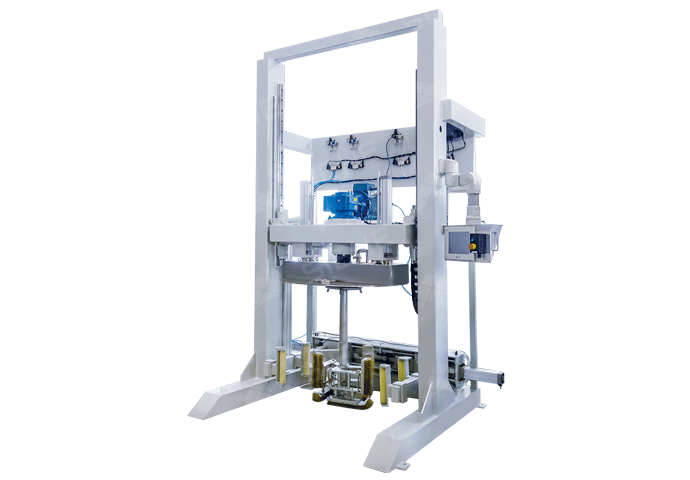

Container Washing Machine
Description
Container Washing Machine is a corollary equipment for Powerful Double Planetary Dispersing Mixer or Multi-functional Dispersing Mixer. It is to wash the removable tank automatically after material discharging. For high-viscosity materials, the high-pressure spray gun can not flush the materials sticking to the tank wall. And the solvent consumption is too much, while manual cleaning consumes a lot of labor (The labor cost is too high.). And most of the cleaning agents are solvents which are volatile. Unsafe and harmful to human body. Therefore, the Container Washing Machine with low solvent consumption in closed operation is the preferred washing machine for customers. There are two types: Electric type and full pneumatic type. Solvent recovery system is optional for the Container Washing machine to realize one-step tank cleaning.
Advantage
-
Safe and
Convenient OperationAdopt air cylinder as lifting actuators. Control the washing head (washing lid) up, stop and down through controlling the valve, simple operation with high stability; with container locking device for fixing the container quickly to prevent any possible accident due to container displacement. Interlock device can be set to prevent mis-operation.01 -
High Durability,
Wide ApplicationThe washing head adopts corrosion-resistant copper brush, nylon brush, animal mane etc. With stretchable cleaning nozzle, it is suitable for washing containers with different dimensions with certain range.02 -
High Automation
DegreeAll procedures (Lifting up and down, auto container locking, auto cleaning, time setting, reciprocating etc.) can be automatically completed the container washing by inputting the diameter and height of the container on the control panel setting.03 -
Good Airtightness,
Solvent RecyclingWith a customized container cover with several sealing rings can match the containers of different diameters. And the whole washing procedure is closed and leakage-free. Outlet can be equipped with a delivery pump, self-cleaning filter, dirty solvent tank, clean solvent tank, solvent recovery device etc.. to realize unmanned operation.04
Technical Parameter
| Model | Container Dia. Range
(mm) |
Container Height Range
(mm) |
Main Motor Power
（kw） |
Cleaning Rotation Speed
（rpm） |
Lifting Stroke
（mm） |
Cleaning Liquid Joint
（mm） |
|---|---|---|---|---|---|---|
| SXT-A | 600-1000 | 500-900 | 5.5 | 0-160 | 1100 | DN25 |
| SXT-B | 800-1200 | 700-1000 | 11 | 0-120 | 1200 | DN32 |
| SXT-C | 1000-1450 | 850-1300 | 15 | 0-100 | 1500 | DN40 |
| SXT-D | 1200-1800 | 950-1600 | 22 | 0-85 | 1800 | DN50 |
Remarks:
* If any change in the data or picture, subject shall prevail without notice.
* The table does not include all products, please contact with our sales engineers for more information.
